Introduction
When working with high-temperature equipment, understanding how long it takes to reach a desired temperature is essential. In the case of a muffle furnace, this is even more critical. These furnaces are widely used in laboratories, research facilities, and industrial settings due to their ability to reach extremely high temperatures with precision. One of the most common questions among users is: How long does it take for a muffle furnace to reach its set temperature? The answer depends on a variety of factors.
What Is a Muffle Furnace?

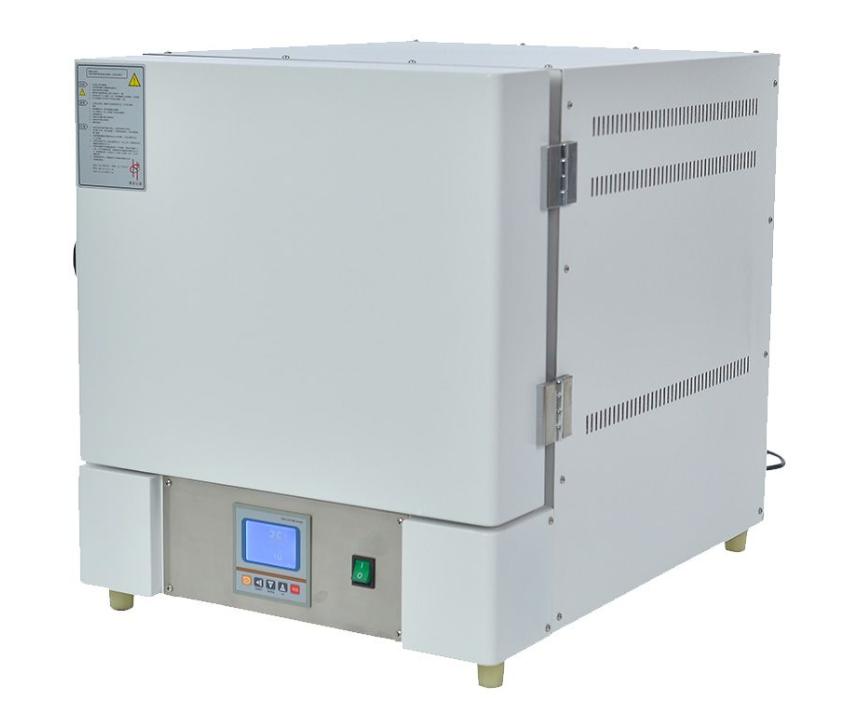

A muffle furnace is a type of high-temperature oven designed for applications that require a clean, controlled environment. Unlike traditional furnaces, muffle furnaces use a chamber surrounded by insulation and heating elements that ensure uniform temperature distribution without direct flame contact with the sample. The sample is placed in a chamber (the “muffle”) and heated indirectly. This setup is particularly beneficial for processes like ashing, sintering, and ceramic firing.
Understanding the Heating Process
Heating in a muffle furnace begins when the electric current passes through the heating elements, which generate heat through electrical resistance. This heat is transferred to the air and internal chamber, gradually raising the temperature. Once the furnace begins heating, its temperature steadily climbs toward the set point, often controlled by an advanced digital controller. The heating process includes three key phases: ramp-up, soaking (holding), and cooling. The ramp-up phase is where most of the waiting happens as the furnace approaches the desired temperature.
Factors Affecting Heat-Up Time
Several variables can influence how quickly a muffle furnace heats up. These include the size of the furnace, type of heating elements, the material of the chamber, ambient temperature, and even how much material is inside the furnace. Additionally, settings like ramp rate (how fast the temperature increases) and setpoint precision also play roles.
Average Time for Temperature Rise
While the exact time varies, a typical laboratory-grade muffle furnace takes between 15 and 60 minutes to reach temperatures of 800°C to 1200°C. For instance, a small benchtop model may reach 1100°C in about 30 minutes under optimal conditions, while larger industrial furnaces might take longer due to their size and load.
Here is a reference table showing average heat-up times based on set temperatures:
| Target Temperature (°C) | Average Heat-Up Time (Minutes) |
| 400°C | 10–20 minutes |
| 800°C | 20–35 minutes |
| 1000°C | 30–45 minutes |
| 1200°C | 40–60 minutes |
| 1400°C | 60–90 minutes |
Please note that these figures assume an empty or lightly loaded furnace. A heavily loaded furnace or one in poor condition may take significantly longer.
Role of Set Temperature in Heating Duration
The higher the set temperature, the longer the furnace will take to reach it. This is because more energy is required to raise the internal temperature of the furnace and its contents to extreme levels. For example, reaching 600°C may take just 20 minutes, but hitting 1400°C could take more than an hour, especially with an average ramp rate.
Influence of Furnace Design and Materials
The design of the furnace significantly affects heat-up time. Furnaces built with fast-heating materials like silicon carbide or molybdenum disilicide can reach high temperatures quicker than those with traditional resistance coils. The chamber material also plays a role—ceramic chambers retain heat well and promote faster internal temperature rise compared to metallic interiors. A compact design tends to heat up faster due to reduced air volume.
The Importance of Insulation
Insulation helps minimize heat loss during the heating process. A well-insulated muffle furnace will retain more heat, allowing it to reach and maintain its set temperature more efficiently. Poor insulation not only increases heating time but also causes energy waste. High-quality fiber insulation or vacuum-formed ceramic insulation is often used in modern furnaces to improve efficiency.
Effect of Load on Heat-Up Time
The more material you put inside the furnace, the more time it will take to heat up. This is because the furnace must also heat the load, not just the air and walls of the chamber. Dense or metallic objects absorb more heat than lightweight materials, extending the time required to reach the target temperature. An overloaded furnace may also restrict air circulation, which can delay uniform temperature distribution.
How Operators Can Impact the Process
Believe it or not, the way a user handles the equipment can affect how fast a furnace reaches its set temperature. Frequent door openings, incorrect ramp rate programming, and overloading are common issues. Proper training, correct program settings, and disciplined operation help ensure the furnace performs optimally.
Comparing Laboratory and Industrial Furnaces
Laboratory muffle furnaces are typically smaller and can heat up quicker due to lower mass and volume. Industrial models, on the other hand, are built for durability and larger loads. As a result, industrial muffle furnaces may require significantly longer to heat, often 1–2 hours or more, depending on the application. However, they often include more robust insulation and powerful elements to offset this delay to some extent.
The Role of Control Systems
Modern muffle furnaces come with digital PID (Proportional-Integral-Derivative) controllers that allow users to set precise ramp rates, soak times, and target temperatures. These controllers ensure that the furnace heats efficiently without overshooting or oscillating. Advanced models can even compensate for variables like ambient temperature and load characteristics, helping improve accuracy and reduce heating time.
Safety Considerations During Heating
Rushing the heating process by trying to override control systems or overloading the furnace is not only ineffective but dangerous. Sudden temperature jumps can cause materials to crack or combust, while poorly ventilated chambers may lead to uneven heating or internal damage. Always allow the furnace to ramp up gradually and avoid opening the door during the heating cycle.
Optimizing Your Furnace Performance
To get the best performance from your muffle furnace, regular calibration, proper loading practices, and choosing the correct ramp rate are key. Keeping the furnace clean and free of ash buildup, using compatible crucibles, and running performance checks every few months can go a long way in reducing heating delays. Also, avoid placing samples too close to the heating elements, which could cause uneven heat distribution.
Real-World Examples
Let’s say a laboratory technician uses a 5-liter muffle furnace for ashing soil samples at 550°C. Typically, this furnace reaches the target temperature in about 25 minutes when empty. But with six ceramic crucibles loaded, the heat-up time stretches to 35–40 minutes. In another case, a ceramic studio uses a large muffle furnace for firing tiles at 1200°C, requiring a full 90 minutes to reach the desired heat due to the load mass and furnace size.
How to Monitor Heating Efficiency
Tracking furnace efficiency over time helps spot when performance starts to drop. By logging heat-up times and comparing them to baseline figures, operators can detect worn heating elements, insulation degradation, or calibration drift. Some high-end furnaces even provide built-in diagnostics and data logging features that simplify this process.
Technological Innovations in Muffle Furnaces
Advancements in furnace technology have made newer models more energy-efficient and faster to heat. Touchscreen interfaces, smart automation, and IoT-based temperature logging are increasingly common. Some models now feature hybrid heating systems using infrared technology to shorten warm-up times significantly without compromising accuracy or safety.
Maintenance and Its Effect on Heating Time
Neglecting maintenance is one of the most common reasons a furnace begins to heat more slowly over time. Accumulated debris, worn-out heating coils, and damaged insulation can drastically reduce performance. Regular inspection of heating elements, recalibrating the temperature sensors, and cleaning the interior chamber are essential for maintaining optimal performance.
Troubleshooting Slow Heating Issues
If your furnace suddenly takes much longer to reach temperature, it’s important to troubleshoot the issue promptly. Check for worn heating elements, loose connections, or faulty temperature sensors. Additionally, inspect insulation for wear and tear. Sometimes, something as simple as a misconfigured program can be the culprit. Keeping a maintenance log helps identify patterns that could indicate bigger issues.
Certified Material Testing Products (Certified MTP) is a leading supplier of construction materials testing equipment and laboratory supplies in the United States. They offer a comprehensive range of products for testing concrete, asphalt, aggregate, soil, and cement, catering to both field and laboratory applications But no matter whether they are prefered or not, the whole idea behind these tools is similar: getting a polished, shiny, and permanent effect. New to stucco or a seasoned pro, investing in good tools and learning the nuances of their use is what will get you started perfecting your craft.
Final Thoughts
The time it takes for a muffle furnace to reach its set temperature depends on several dynamic factors including furnace design, load size, heating elements, insulation, and operator practices. While small lab furnaces may reach 800°C in under 30 minutes, industrial units with larger loads may need over an hour. Optimizing ramp settings, performing regular maintenance, and understanding how each element influences heating time can significantly improve efficiency and reliability.
Ultimately, knowing what to expect—and how to manage it—will make your work safer, faster, and more accurate.
Frequently Asked Questions (FAQ)
1. What is the typical warm-up time for a muffle furnace?
The warm-up time for a muffle furnace typically ranges from 15 to 60 minutes, depending on the target temperature, furnace size, and load. A small laboratory furnace may take around 25–30 minutes to reach 1000°C, while larger or heavily loaded furnaces might require more time.
2. Why does my muffle furnace take longer to reach temperature than it used to?
Over time, heating elements can degrade, insulation can wear out, and internal components may accumulate debris. These factors reduce efficiency and extend the heating period. Regular maintenance and calibration can help restore optimal performance.
3. How can I speed up the heating process in my muffle furnace?
To speed up the process:
- Use a lower ramp rate initially and gradually increase it
- Preheat the furnace if possible
- Minimize the load or distribute it evenly
- Keep the furnace clean and well-maintained
- Avoid opening the door during heating
4. Does the ambient room temperature affect furnace heating time?
Yes, it can. If the surrounding room is very cold, nfc business card it may take slightly longer for the furnace to reach its set point, especially during startup. However, this difference is usually minimal unless the furnace is placed in an unregulated environment.
